Here are photos of the Carport with one simulated "Panel" on it. The panel (a piece of tarpaper) is the same size as BP 3160. More information is available if needed.
Last 2 pictures are full size to show detail, (hope you have broadband ;-}

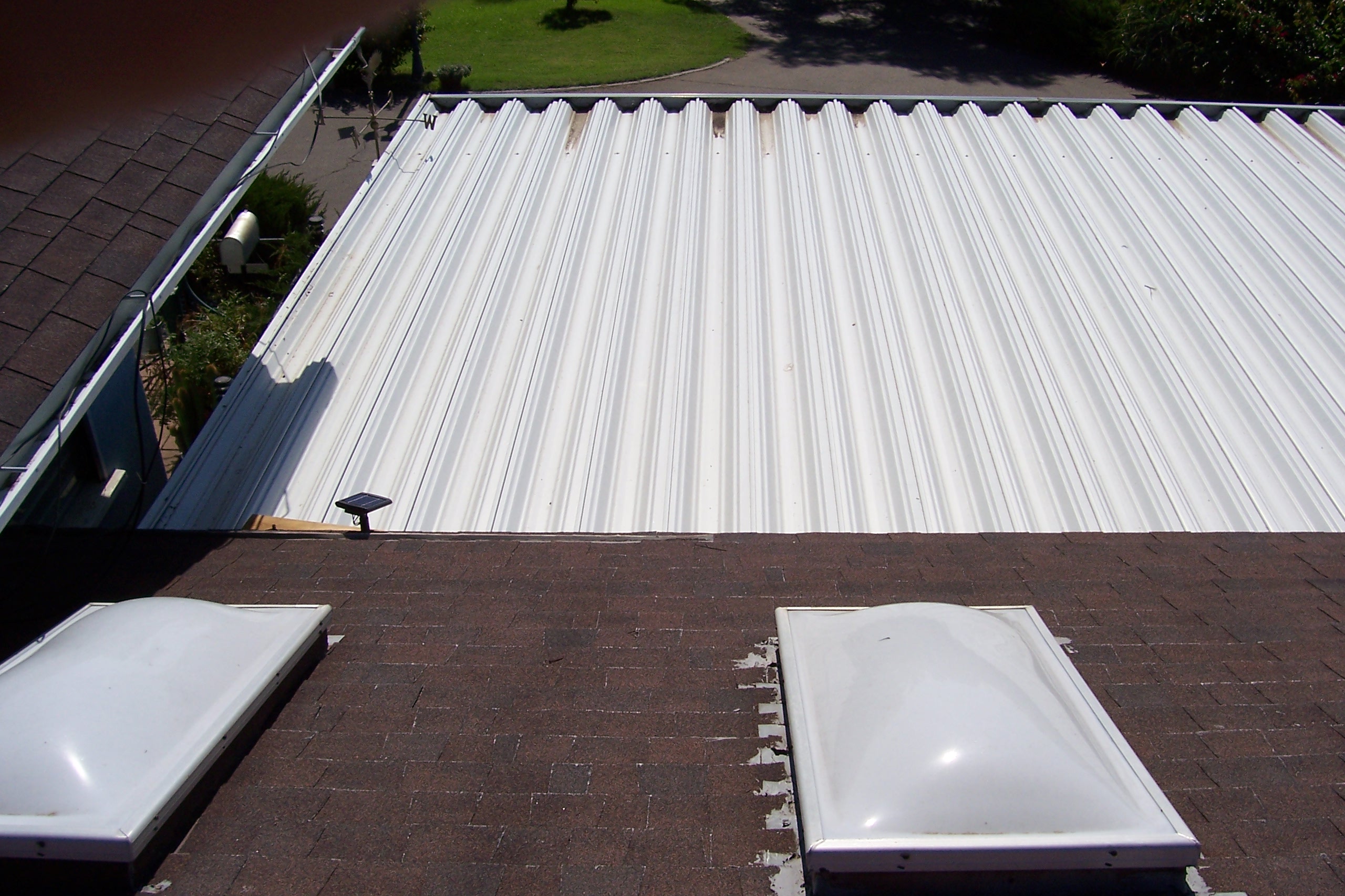

Left (From roof) side is only morning shaded portion.

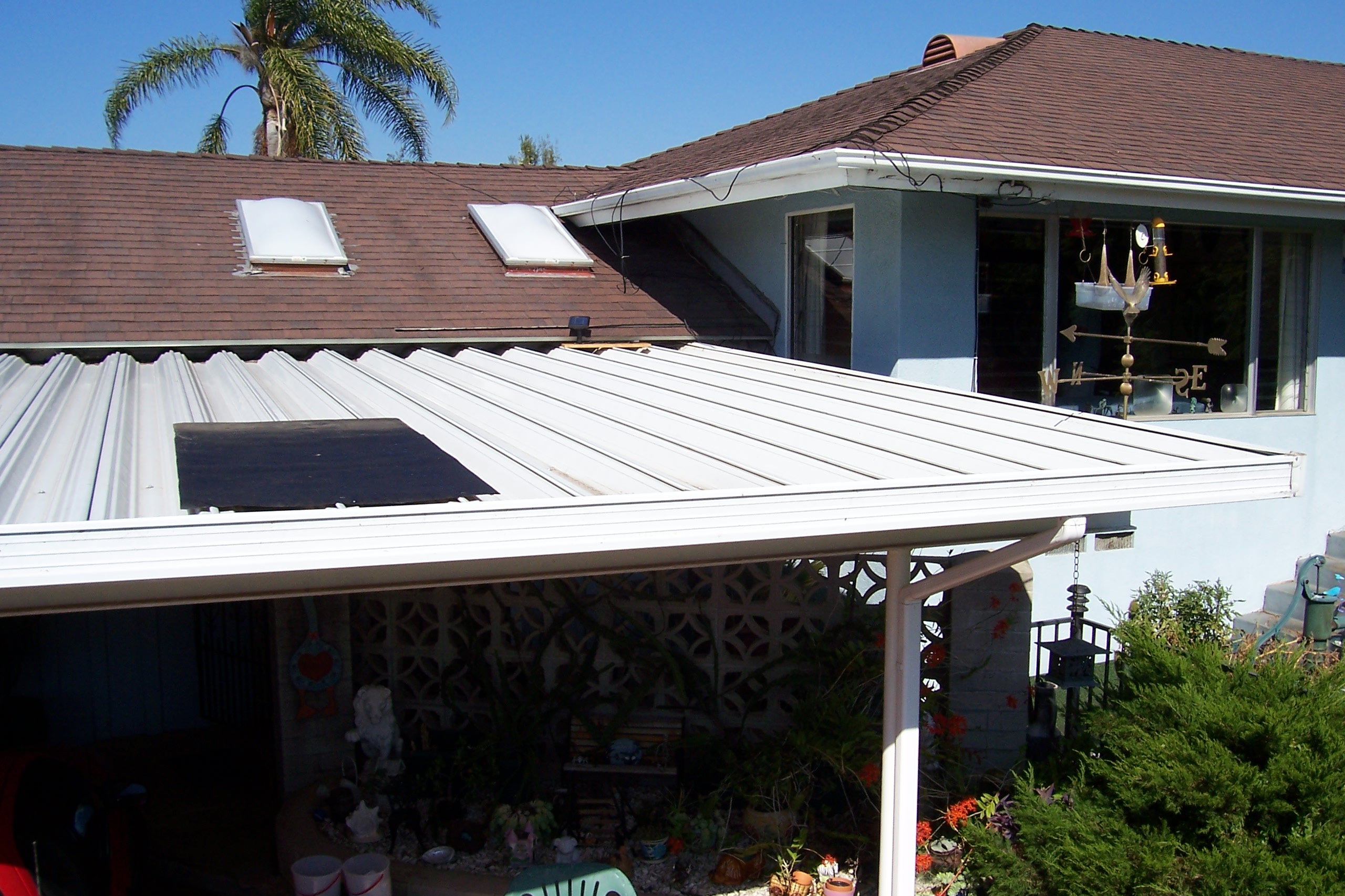

Panel on right - note home power supply next to it.

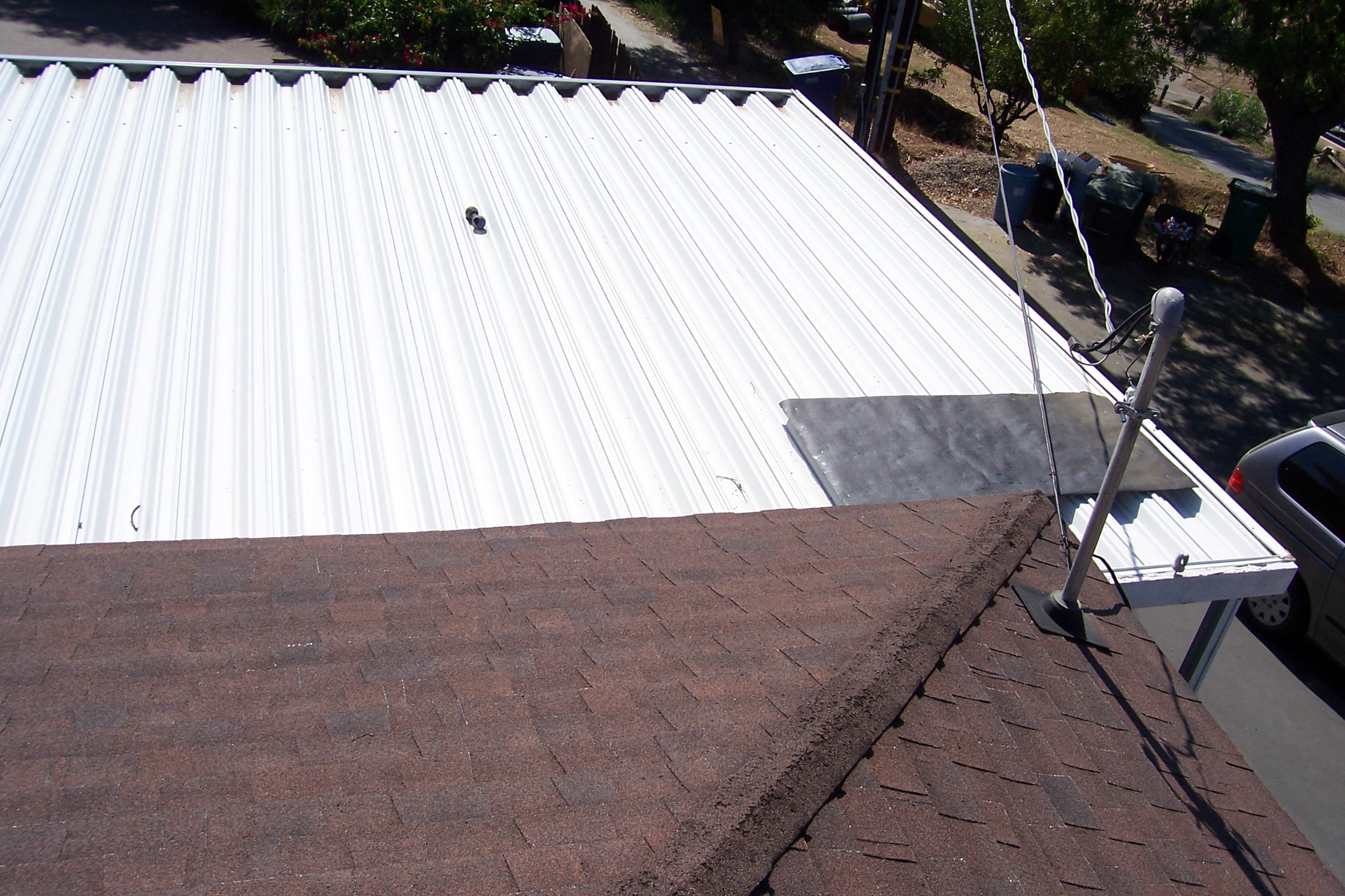

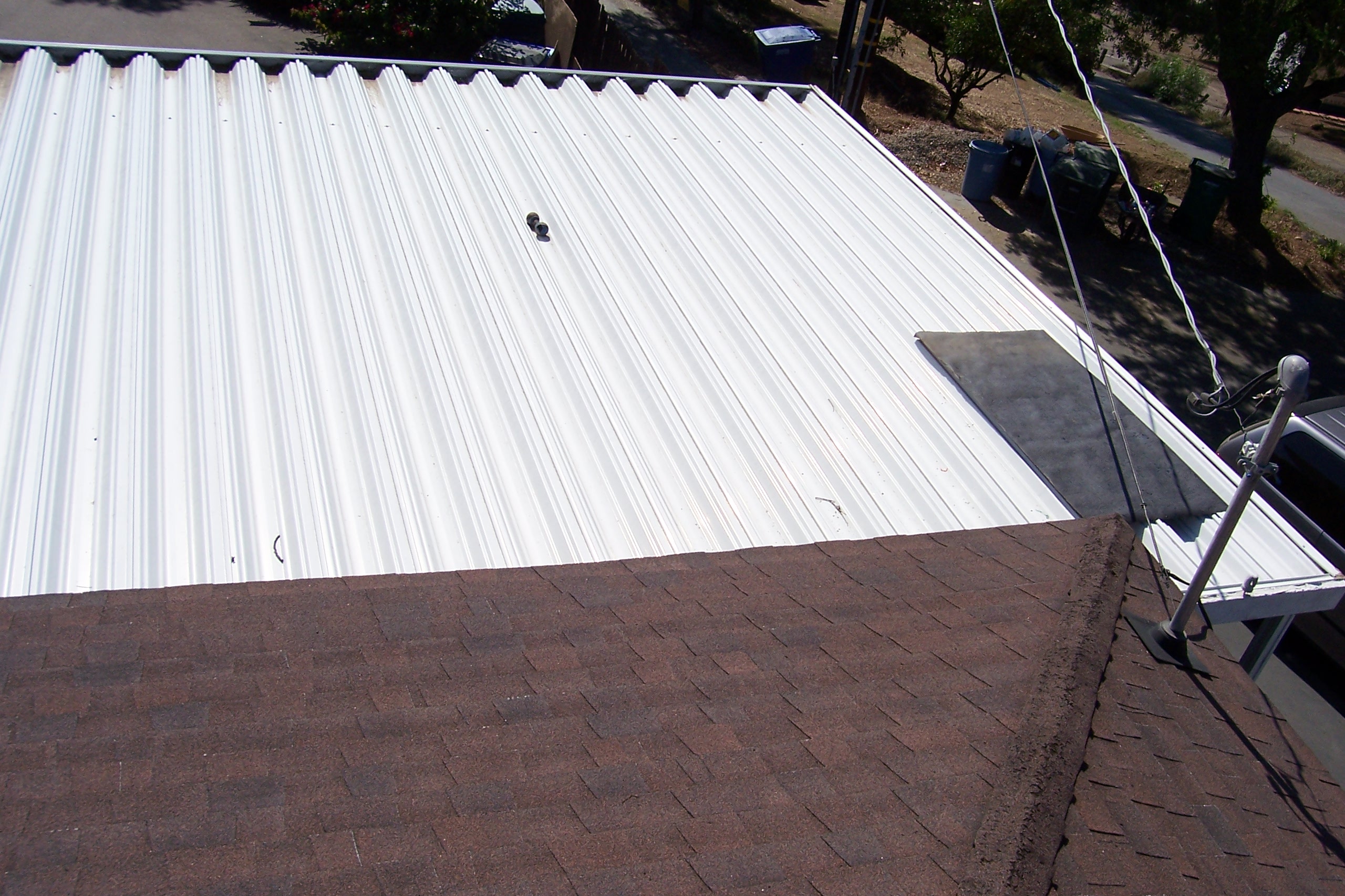

Panel turned

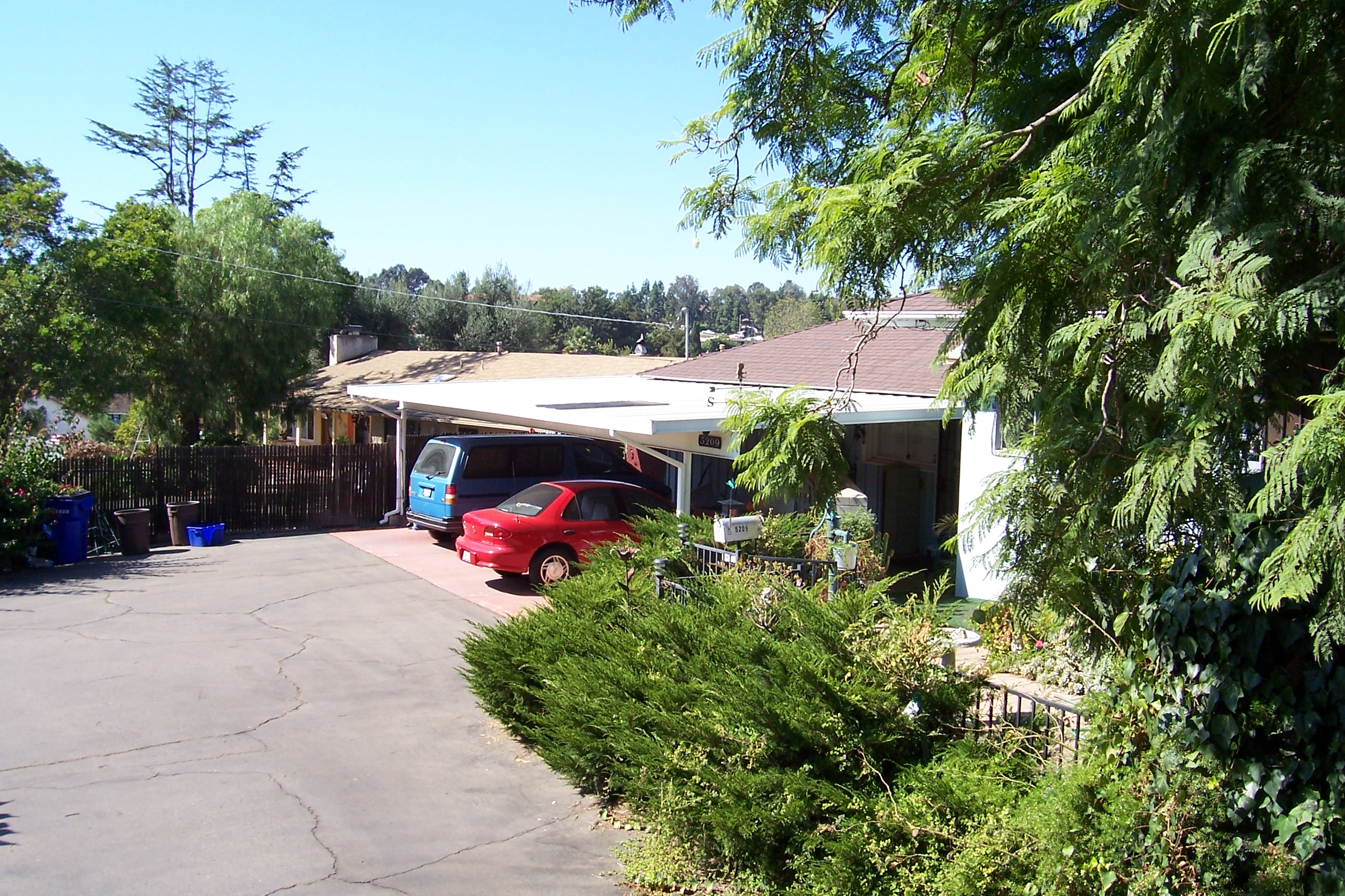

View of 'shaded' section taken from driveway.

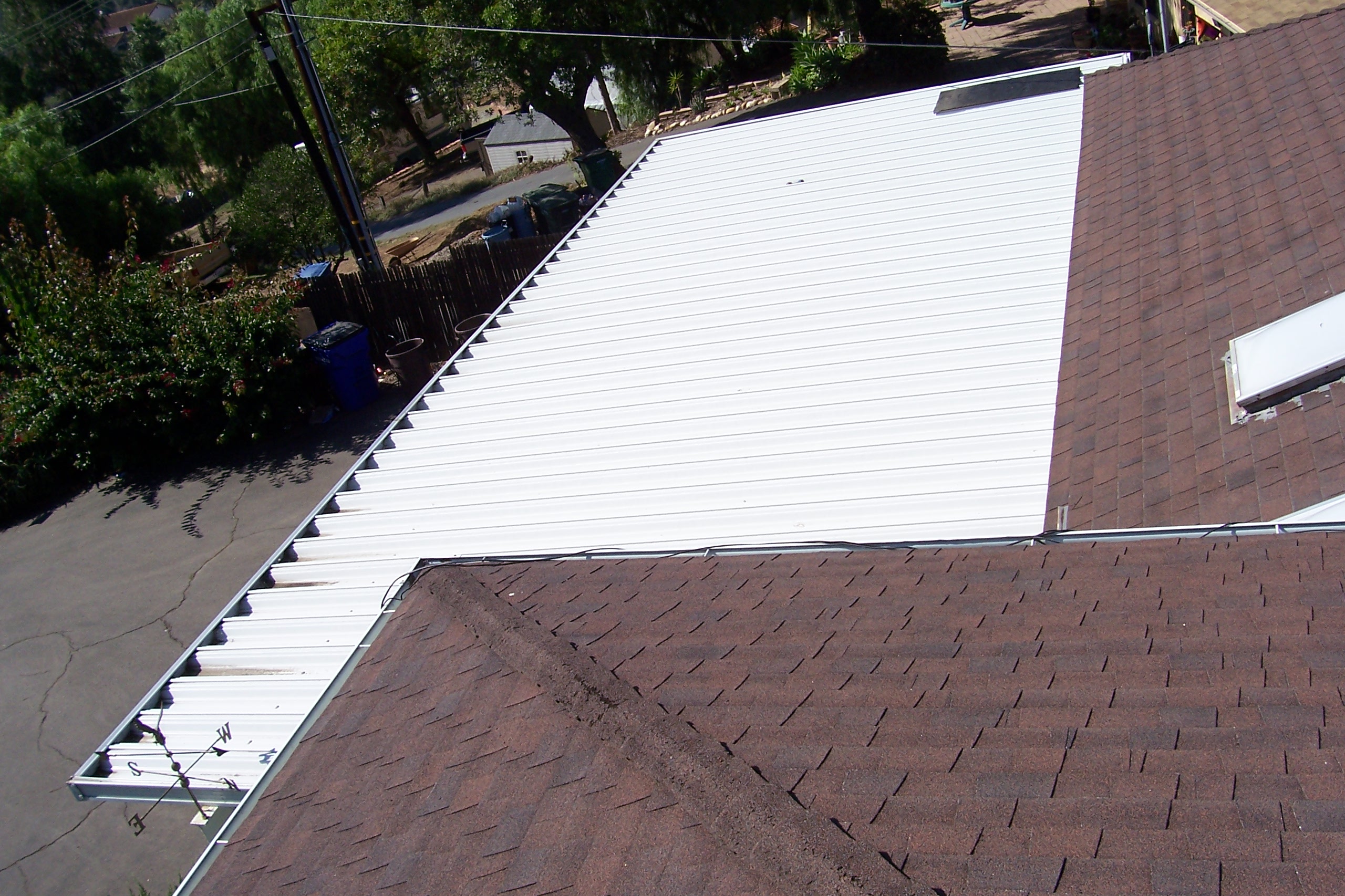

Overview taken from upper roof. Note panel at right.
